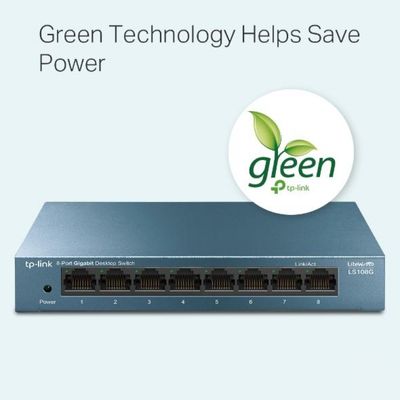

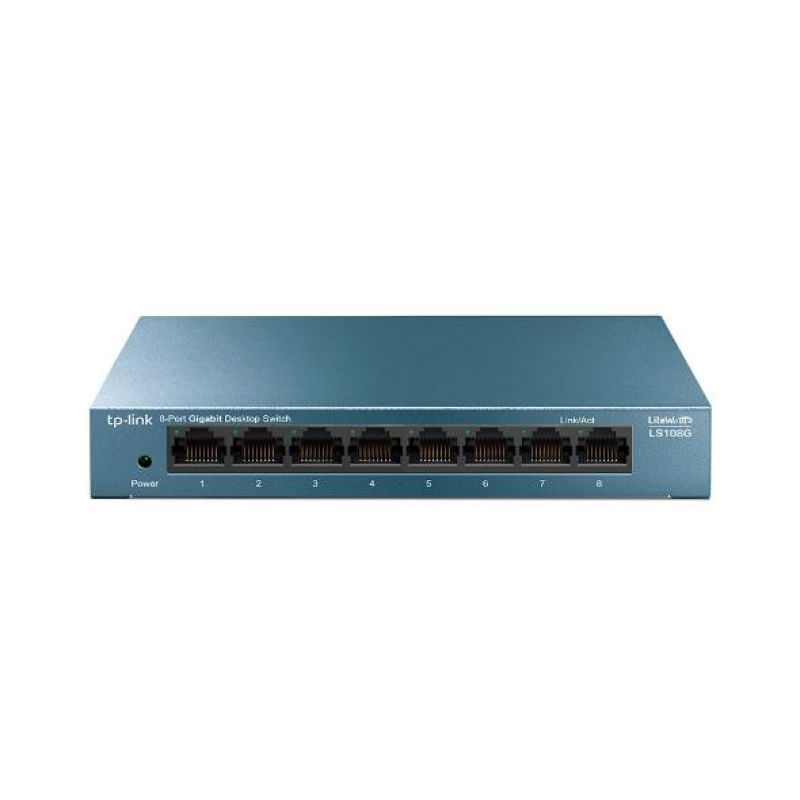

Informações do Produto Características Porta RJ45 de negociação automática 10/100 / 1000Mbos que suporta Auto-MDI / MDIX A tecnologia Ethernet verde economiza energia O controle de fluxo IEEE 802.3X fornece transferência de dados confiável Design de caixa de aço, desktop ou montagem na parede Suporte a função QoS 802.1p / DSCP Plug and play, nenhuma configuração necessária ESPECIFICAÇÕES TÉCNICAS | DIMENSÕES Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p Interface 8 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports Fan Quantity Fanless External Power Supply External Power Adapter (Output: 9VDC / 0.6A) LED Indicator System Power Link/Act indicators per port built into each RJ-45 port Dimensions ( W x D x H ) 6.2 x 3.9 x 1.0 in. (158 x 99.1x 25 mm) Max Power Consumption 3.7W(220V/50Hz) Max Heat Dissipation 12.617 Btu/hr PERFORMANCE Packet Forwarding Rate 11.9 Mpps MAC Address Table 4K Packet Buffer Memory 1.5 Mb Jumbo Frame 16 KB SOFTWARE FEATURES Advanced Features Green Technology 802.3X Flow Control 802.1P/DSCP QoS Transfer Method Store and Forward OTHERS Certification CE, FCC, RoHS Package Contents 8-Port 10/100/1000Mbps Desktop Switch Power Adapter Installation Guide Environment Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing
